High Capacity 2500mm Width SF Series Cassette Single Facer Machine with Steam Heating Suction for Corrugated Cardboard Production Line

1 Set
MOQ
To be negotiated
harga
High Capacity 2500mm Width SF Series Cassette Single Facer Machine with Steam Heating Suction for Corrugated Cardboard Production Line
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Nama: berwajah tunggal
Penggunaan: Membuat keruntuhan karton
Warna: Putih
Jaminan: 1 Tahun
Bahan Kemasan: Plastik, Kertas, Kayu
voltase: 220V/380V/440V
Kondisi: Baru
Tipe yang Didorong: Listrik, uap
Informasi dasar
Tempat asal: Hebei, Tiongkok
Nama merek: GR
Sertifikasi: CE,ISO
Nomor model: SF30-2500
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Penutup film plastik atau kemasan kotak kayu (opsional)
Waktu pengiriman: 30-60 HARI
Syarat-syarat pembayaran: L/C,T/T,Western Union,MoneyGram
Menyediakan kemampuan: 20 Set/Bulan
Deskripsi Produk
High Capacity Corrugated Cardboard Production Line with SF Series 2500mm Width Cassette Single Facer Machine and Steam Heating Suction System
Corrugated Cardboard Production Line Equipped with SF Series 2500mm Width Cassette Single Facer Machine and Steam Heating Suction for Output. SF2500 Single Face Machine featuring advanced negative pressure design and quick-change roller system.

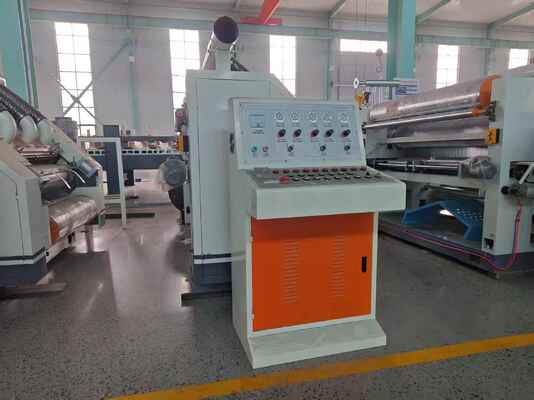

High Capacity 2500mm Width SF Series Cassette Single Facer Machine with Steam Heating Suction for Corrugated Cardboard Production Line 0
Key Features
  • Main corrugating roller: Ø500mm (varies by flute), pressure roller Ø600mm, preheat roller Ø500mm
  • Negative pressure design reduces heat consumption and ensures even core paper pressing for superior corrugate molding
  • Quick roller change in 10 minutes with electric trolley loading and air pressure locking system
  • Corrugated roller made from 50CrMo high-quality alloy steel with heat treatment and tungsten carbide surface
  • Airbag control system for corrugated and pressure rollers with barometric pressure buffering
  • Electric glue volume control with independent operation capability
  • Movable glue unit for easy cleaning and maintenance
  • User-friendly touch screen interface with color display for operation status and parameter settings
  • Built-in pre-conditioner with proportional spraying for core paper temperature and moisture adjustment
  • High-temperature grease bearings for main and auxiliary corrugating and pressure rollers
High Capacity 2500mm Width SF Series Cassette Single Facer Machine with Steam Heating Suction for Corrugated Cardboard Production Line 1
Technical Specifications
Parameter Specification
Effective Width 2500mm
Design Speed 200m/min
Economic Speed 180-300m/min
Paper Feed Range 950-2550mm
Maximum Steam Temperature 200℃
Steam Pressure 1.2Mpa
Working Power 380V 50Hz 37KW
Packaging & Shipping
Adopts moisture-proof and shock-proof packaging suitable for long-distance road transportation and various weather conditions. A full set of maintenance and operation manuals is included.
High Capacity 2500mm Width SF Series Cassette Single Facer Machine with Steam Heating Suction for Corrugated Cardboard Production Line 2
Our Services
  • Professional technicians assigned to client's site for equipment installation, commissioning, and operator training
  • Free training available at our company for operators and maintenance personnel upon request
  • Detailed installation and operation manuals provided with equipment
  • Free plant layout design available upon client request
  • One-year quality warranty with free maintenance and replacement of wearing parts
  • Long-term maintenance service and cost-price parts supply after warranty period
  • 24/7 complaint response system with resolution within 24-48 hours
