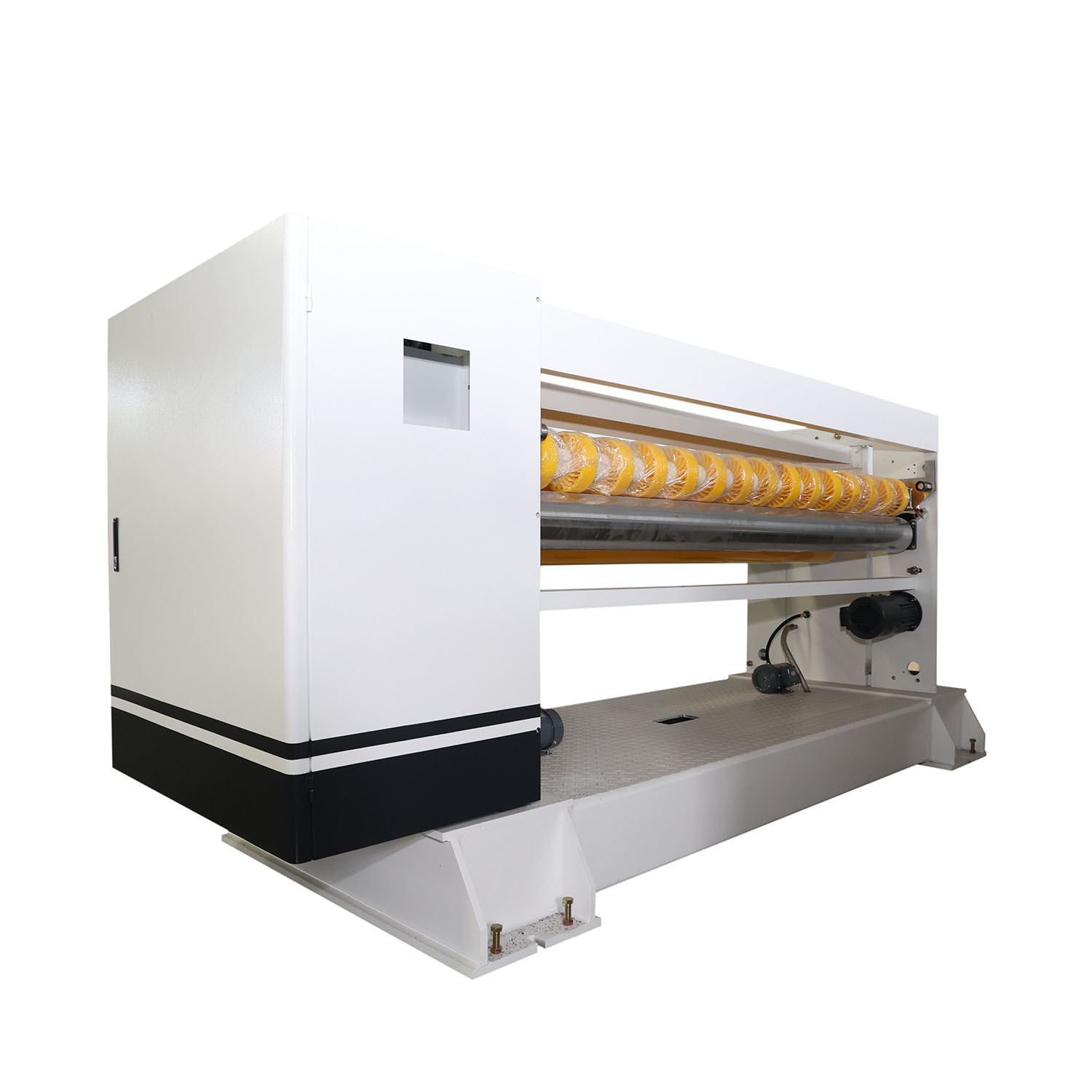

1800mm NC Cutter Machine Of Corrugater Line Spiral Cutter

The cross cutter is a crucial downstream processing unit in a corrugated cardboard production line, positioned between the drying section and the stacking section. Its primary function is to perform high-speed, precise transverse cutting of the continuously produced corrugated board according to preset dimensions, thereby obtaining single sheets of cardboard of specified lengths.

A cross cutter mainly consists of a power system, a paper feed mechanism, a measuring system, a cutting mechanism, and a control system. Its working principle is as follows: the continuous stream of corrugated board is smoothly fed in by the feed rollers. The measuring system (typically using rotary encoders or servo systems) tracks the traveling length of the board in real time. When the board reaches the preset cutting length, the control system instantly issues a command to drive the cutting blade (usually a rotating knife roller) to execute a high-speed transverse cut across the board. Modern high-speed cross cutters employ servo drive technology, achieving extremely high cutting accuracy (typically with an error within ±1 mm) and fast production cycles, perfectly matching the speed of high-speed corrugated board production lines.

The performance of the cross cutter directly determines the dimensional accuracy, cut quality, and production efficiency of the finished cardboard. Advanced cross cutters typically feature automated order scheduling, seamless order changeover, and automatic scrap ejection, making them a key component in ensuring the automation, intelligence, and flexibility of corrugated box production.

• Can store 200 units orders, replace cutter specifications quickly and accurately, change orders without stopping, and enables networked computers to facilitate production management

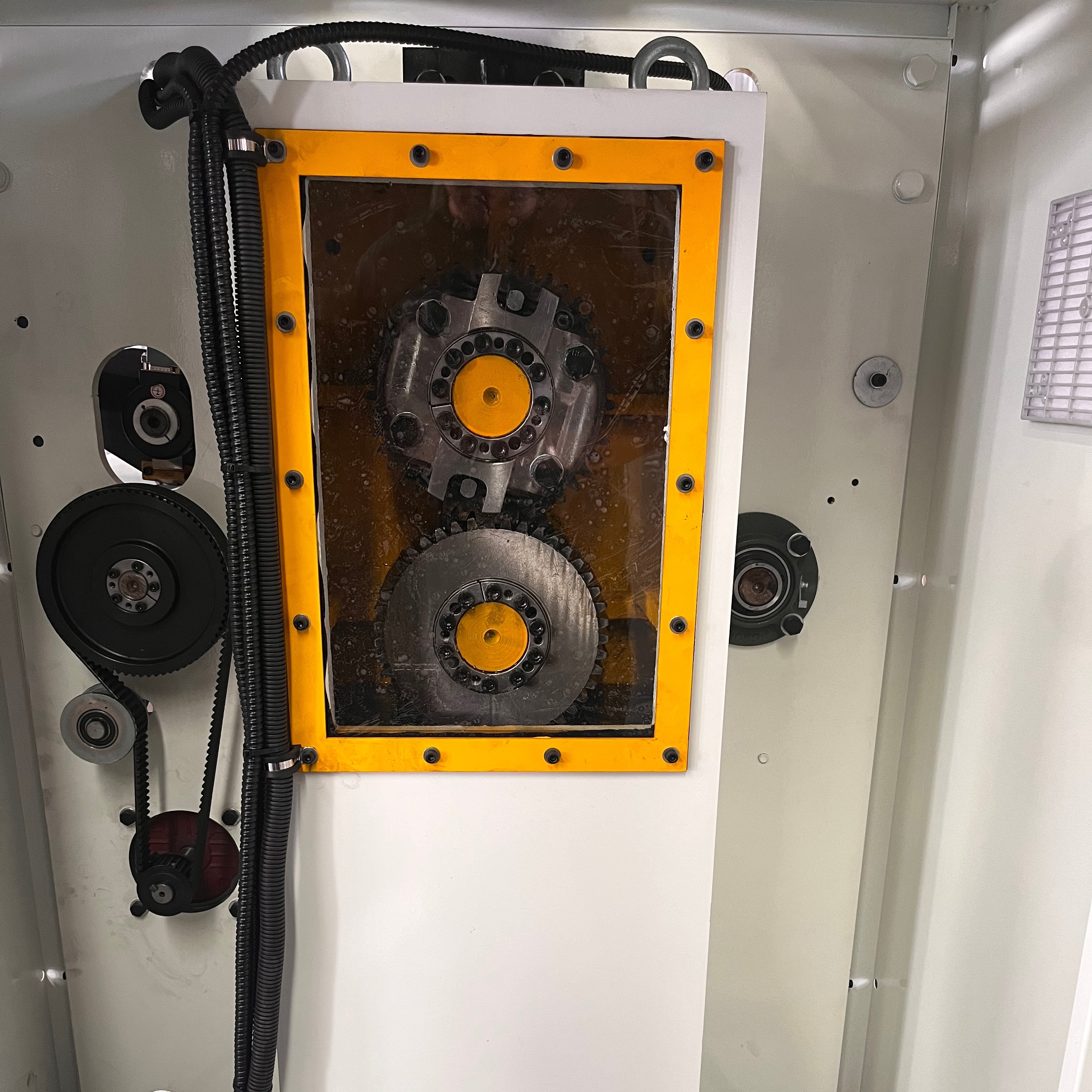

• Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy

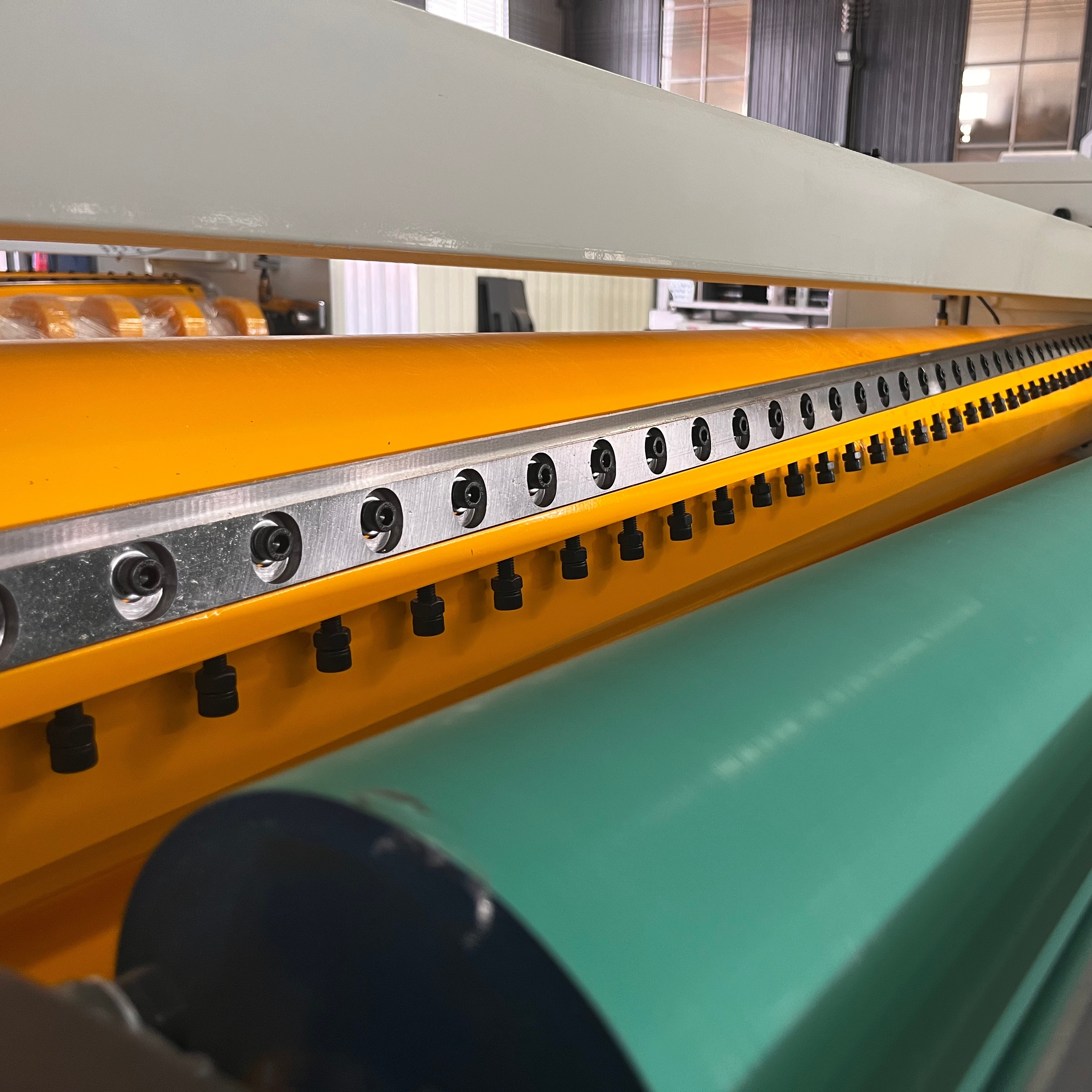

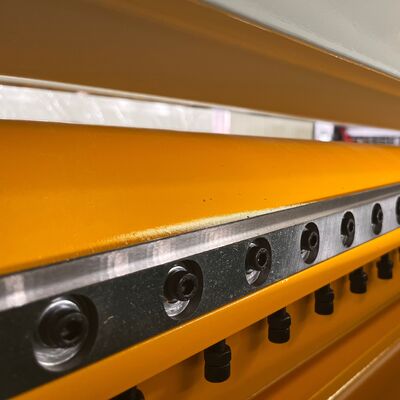

• Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife, scissors, shears, shear force, long blade life

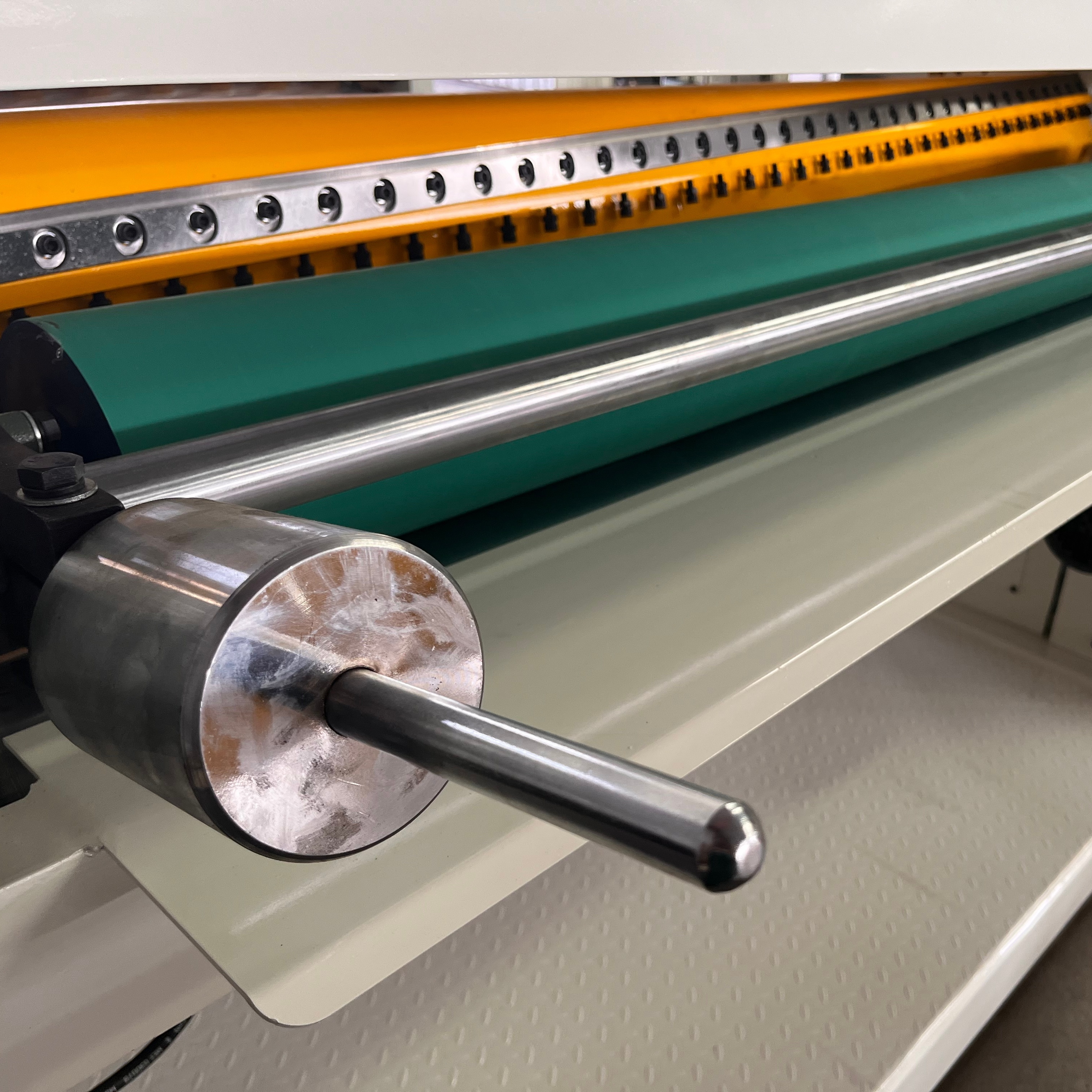

• Around feed rollers use the sun gear platen way, smooth delivery, pressure evenly, preventing crushed plate board or blockage
• Braking energy storage (non-dynamic braking) reduces energy consumption; average electricity consumption is 1/3 of ordinary NC cutting machines, saving over 70% power
• Precision adjustable no gap gear ensures precise blade engagement and running balance
• Independent oil pump and filter with two copper distribution in each gear position for lubrication and cooling
• Knife roller: fine quality forged steel material, balanced, with good stability
